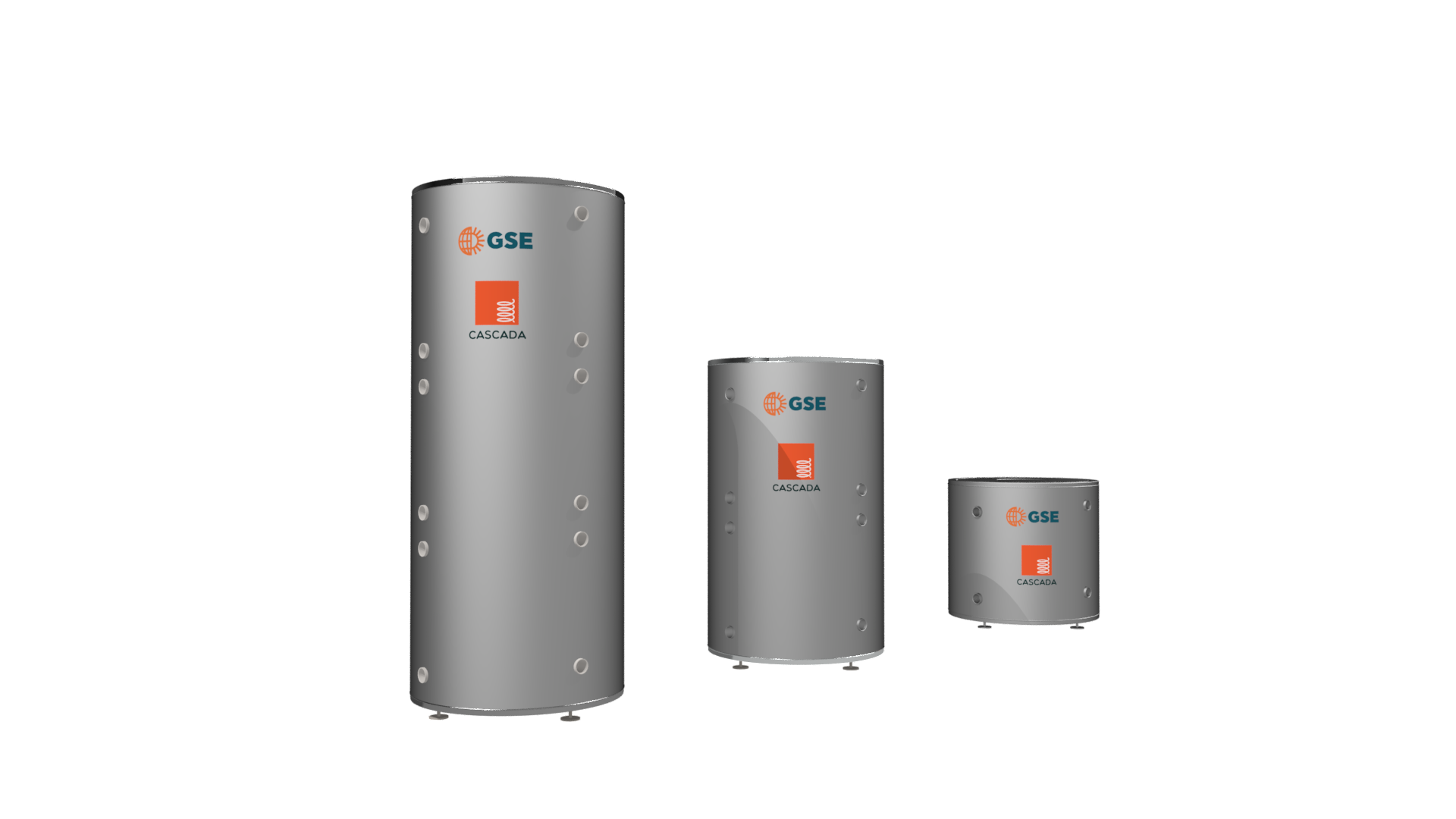

The Cascada Fresh Water Heat Exchanger is at the forefront of heat exchange products, ensuring high domestic hot water quality always at the desired temperature, while it maintains significantly high efficiency. In addition, its unique design is such that it removes the risk of scale build-up.
System operation can be fully automated via PLC and real-time display is provided via touch screen or PC.
| Heat exchanger type | Counter flow, Corrugated | ||
| Heat exchanger material | INOX 316L | ||
| Welding type | Automatic circular welding | ||
| Protection | Inactivation coating | ||
| Primary circuit nominal operating pressure | 3 bar | ||
| Primary circuit maximum operating pressure | 6 bar | ||
| Secondary circuit nominal operating pressure | 6 bar | ||
| Secondary circuit maximum operating pressure | 12 bar | ||
| Nominal operating temperature | 95⁰C | ||
| Insulation | Polyurethane foam (thickness: 80 mm, density: 45 kg/m3) | ||
| Outer casing material | INOX 304/PVC leather | ||
| MODEL | CASCADA HE FW-CF 1/2 | CASCADA HE FW-CF 2/2 | CASCADA HE FW-CF 1/3 | CASCADA HE FW-CF 2/3 | CASCADA HE FW-CF 3/3 | CASCADA HE FW-CF 2/4.5** | CASCADA HE FW-CF 3/4** |
| Nominal Flow Rate (lt/min) | 33,3 | 66,6 | 50 | 100 | 150 | 150 | 200 |
| Nominal Flow Rate (m3/h) | 2 | 4 | 3 | 6 | 9 | 9 | 12 |
| Nominal Useful Power (kW)* | 70 | 140 | 105 | 210 | 315 | 315 | 420 |
| Primary Circuit Connections | 1 1/2΄΄ | 1 1/2΄΄ | 2΄΄ | 2΄΄ | 2΄΄ | 2΄΄ | 2΄΄ |
| Secondary Circuit Connections | 1΄΄ | 1΄΄ | 1 1/2΄΄ | 1 1/2΄΄ | 1 1/2΄΄ | 1 1/2΄΄ | 1 1/2΄΄ |
| Height (mm) | 730 | 1300 | 730 | 1300 | 1900 | 1550 | 2350 |
| Diameter (mm) | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Weight (kg) | 62 | 106 | 70 | 122 | 217 | 143 | 250 |
| *(Primary circuit temperatures : 60-55oC, Secondary circuit temperatures: 20-50oC)
**ON DEMAND |
|||||||
